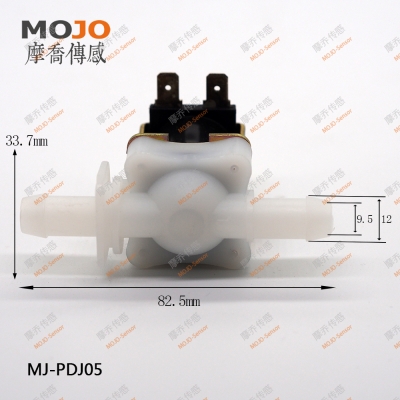

MJ-PDJ05 220V

Product main technical indicators and the matters needing attention:

1, The low pressure electromagnetic valve use environmental conditions:

1.1, Height is not more than 2500 meters above altitude.

1.2, The ambient temperature is 0 to 40 degrees.

1.3, Air relative humidity below 95% (when the temperature is 25 degrees)

2, The type and rated parameters:

2.1, Type: Type (one-way) electromagnetic valve, also known as packless pilot valve action type solenoid valve.

2.2, The rated voltage (dc) 12 V, 24 V, 220V, rated current:  12 v - 300 ma, 24 v - 230 ma

2.4, The work style: short quotas) duty cycle

2.5, Insulation class: E insulation.

2.6, Using the medium (0-55 degrees), water ,vapor.

2.7, Using pressure: 0.02-0.8 Mpa.

2.8, The water flow characteristics:
