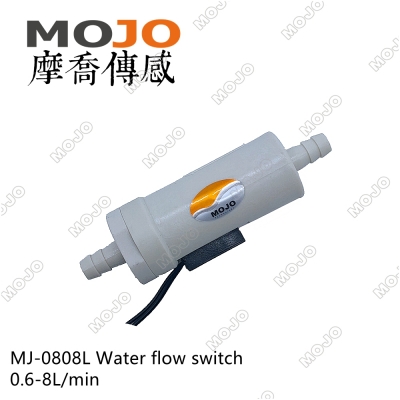

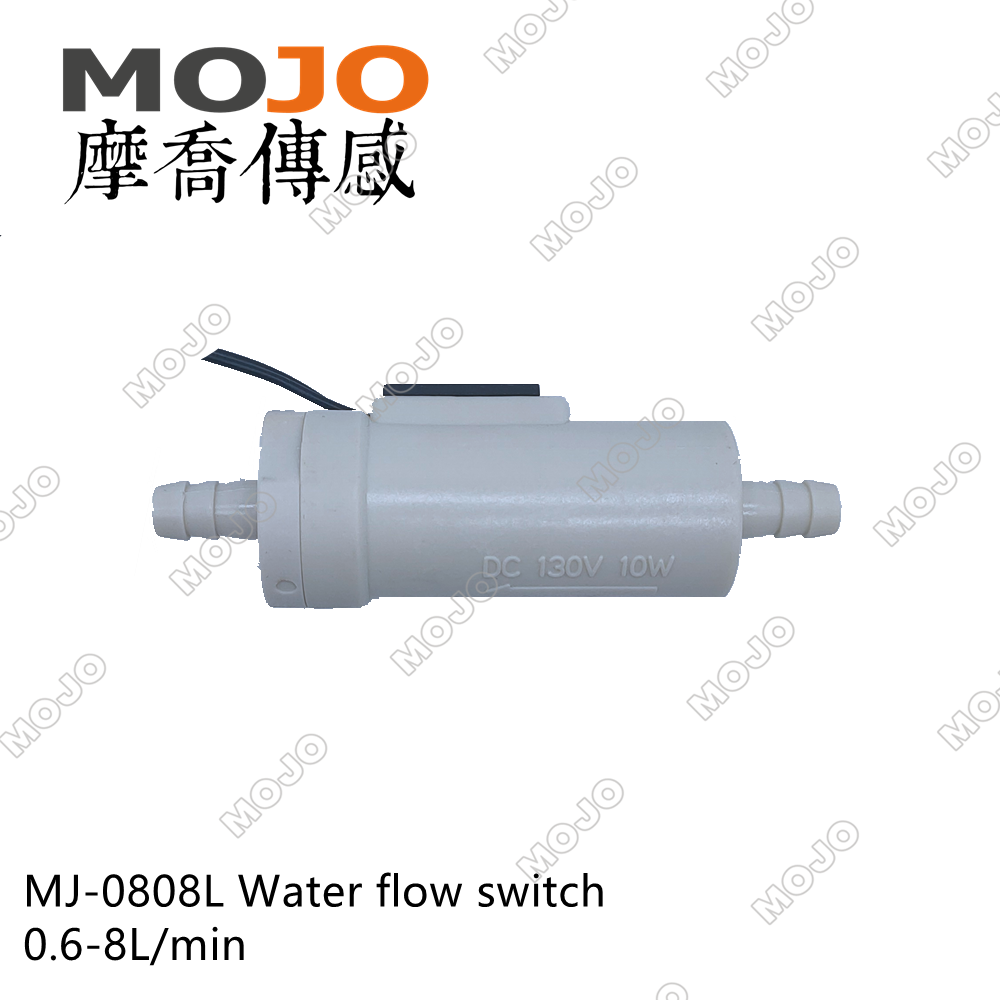

MJ-0808L

MJ-0808L
Product Name

MJ-0808L

  • Model: MJ-0808L
  • Shipping Weight: 0.1kg
  • Units in Stock: 90000

Price:   $5.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The principle of operation

Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.



Applications

Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.



Electrical characteristic

Name

MJ-0808L

Product Features

Use a pair of magnetic float and the impact of the repulsion  interact to cooperate with dry reed pipe output switch signals

Material

PP

LWH(MM)

30*95

ID

8-10MM

Startup flow rate

0.8-1.3L/min

Maximum stream flow

8L/min

Operating pressure

0.005-1.0MPA

Max pressure

1.5MPA

Media

WATER

Operating temperature

≤80℃

Installation Method

With products for water into the direction of arrow, level and upright installation all can















































Switch parameters

temperature range 10W

Unit

Features

maximum voltage

DC130

V

  Switch for the imported dry reed pipe

breakdown voltage

--

V

Small flow start, big flow work

Max current

0.5

A

  Start flow rate can be adjusted

load current

1

Max A

 No standby power consumption

contact resistance

0.2

MaxΩ

One-way control, prevent backwater

Insulation Resistance

108

MinΩ

Industrial control and water treatment of good assistant

temperature range

-40--80

Other specifications and wiring length can be made to order

NOTE:

1,When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.

2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.

3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.

4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.

5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
