Product Name

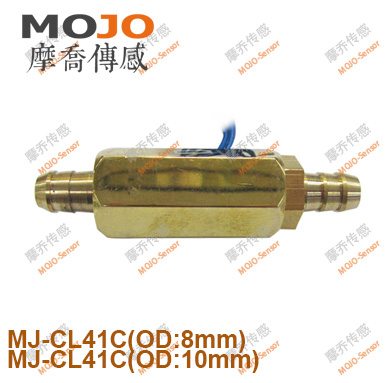

MJ-CL41C G1/4''

  • Model: MJ-CL41C
  • Shipping Weight: 0.3kg
  • Units in Stock: 90000

Price:   $7.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The principle of operation





Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.





Installation instructions



1, flow switch installation environment to avoid strong vibration, and shaking with the local magnetic environment, in order to avoid the flow switch malfunction. In order to avoid particles, debris into the water flow switch must be installed in the inlet filter.

2, when the magnetic material close to the water flow switch, its characteristics may change.

3, flow switches, relays must be compatible with use, as less power reed switch (typically 10W and 70W) easy to burn. Relay maximum power 3W, 3W power will be greater than the normally open and normally closed phenomenon.



Electrical characteristic





Name

MJ-CL41C

Product Features

Use a pair of magnetic float and magnet in flow and the impact of the repulsion interact to cooperate with dry reed pipe output switch signals (0/1)

Material

Copper/Brass

LWH(MM)

22*62

ID

G1/4"

Startup flow rate

1.2L/min

Maximum stream flow

12L/min

Operating pressure

0.005-1.0MPA

Max pressure

1.5MPA

Media

WATER

Operating temperature

≤80℃

Installation Method

With products for water into the direction of arrow, level and upright installation all can























































Switch parameters

temperature range 70W

Unit

Features

maximum voltage

DC220/AC250

V

  Switch for the imported dry reed pipe

breakdown voltage

DC400

V

Small flow start, big flow work

Max current

1

A

  Start flow rate can be adjusted

load current

1.5

Max A

 No standby power consumption

contact resistance

0.2

MaxΩ

One-way control, prevent backwater

Insulation Resistance

108

MinΩ

Industrial control and water treatment of good assistant

temperature range

-40--120

Other specifications and wiring length can be made to order

NOTE:

1,When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.

2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.

3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.

4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.

5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
