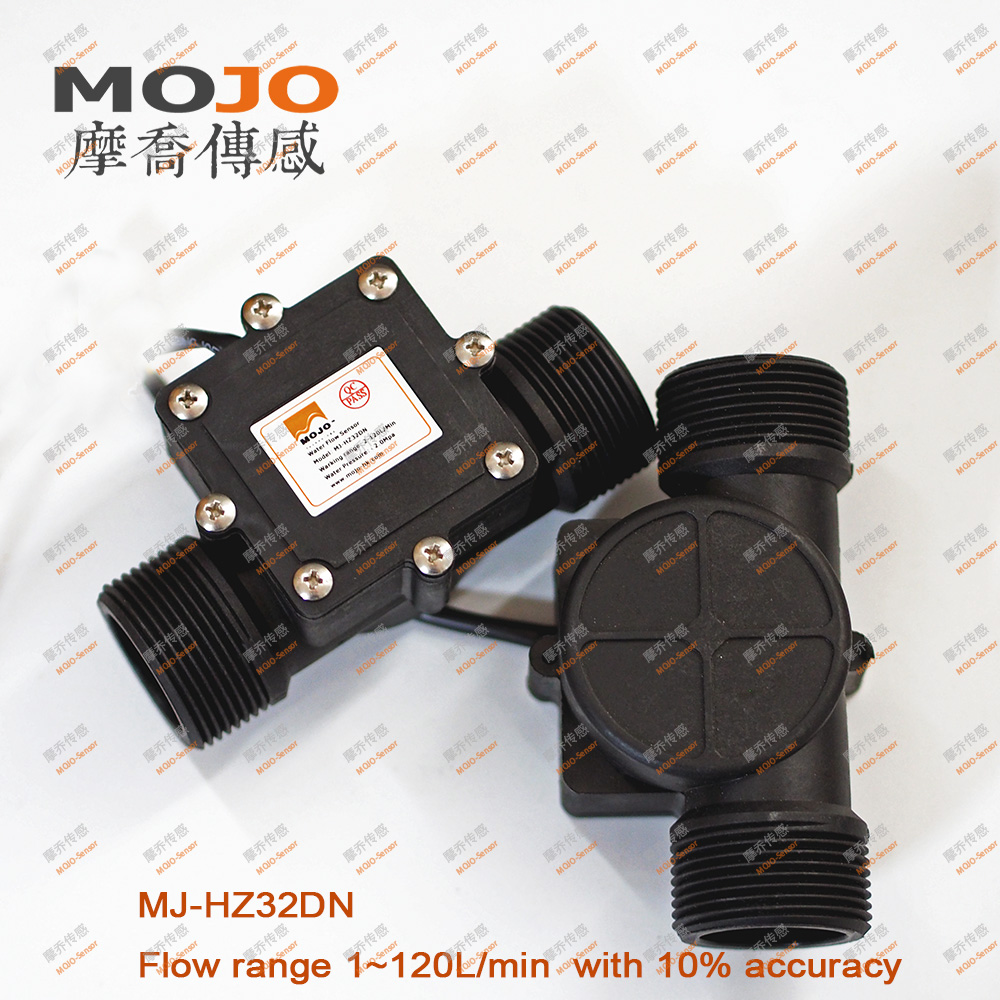

MJ-HZ32DN DN32 2-120L/MIN

MJ-HZ32DN DN32 2-120L/MIN
Product Name

MJ-HZ32DN DN32 2-120L/MIN

  • Model: MJ-HZ32DN
  • Shipping Weight: 0.3kg
  • Units in Stock: 89853

Price:   $13.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

Electrical characteristic

Minimum rated working voltage

DC4.5 5V-24V

Maximum operating current

15  mA (DC 5V)

Operating voltage range

DC  5~18 V

Load capacity

≤10 mA (DC 5V)

Operating Temperature Range

≤80℃

Humidity Range

35%~90%RH(No frost status)

Allow pressure

Water pressure in less than 1.75Mpa

Storage Temperature

-25~+80℃

Storage Humidity

25%~95%RH

Output pulse high Level

>DC 4.5 V  (Input voltage DC 5 V)

Output pulse low level

<DC 0.5 V  (Input voltage DC 5 V)

Accuracy

 (Flow - pulse output)

2~120 L/min±10%

The output pulse duty cycle

50±10%

Output rise time

0.04μS

Output fall time

0.18μS

Flow- pulse characteristics

F(Hz)=[4.5 Q]±10%( Proficiency Test) (Q For flowL/min )

Impact resistance

Good Product packaging,from 50cm height X、Y、Z direction The free fall to the concrete surface without exception Precision changes in less than 10%

Insulation resistance

Insulation resistance between the Hall sensor and copper body.

More than 100MΩ。(DC 500V)

Heat resistance

Placed the environment of 80 ± 3 ° C for 48h , Return to room temperature 1- 2h no exception And parts free of cracks , relaxation, expansion , deformation phenomena such as precision changes in less than 10%.

Cold resistance

Placed in the environment of -20 ± 3 ℃ 48h, return to room temperature 1-2h no exception, and part non-cleaved Pattern, relaxation , expansion , deformation phenomena such as precision change less than 10%.

Moisture resistance

40 ± 2 ° C , relative humidity 90 % ~ 95 % RH for 72h remove, the insulation resistance of 1MΩ or more

Drawing strength

1 minutes 10N pulling force imposed on the pin-out , no loose , pull -off phenomenon , and the performance did not change .

Durability



Into 0.1MPa water pressure at room temperature , from intake through to connect the 1S , disconnect the 0.5S is a cycle ,

300 000 test without exception .







Remark

  1. Don’t disassemble when the product is found to have quality problems .
  2. For dry air sensor within the residual water should pay attention to the blowing pressure <0.3MPa and intermittent output impeller.Can not be rotated at high speed in the anhydrous state .





Connection mode:

  1. RED line for power+
  2. BLACK line for power-

YELLOW line for signal output





Installation instructions

1、When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.

2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.

3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.

4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.

5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
