MJ-HZ40WB-SUS 9-150L/Min

MJ-HZ40WB-SUS 9-150L/Min
Product Name

MJ-HZ40WB-SUS 9-150L/Min

  • Model: MJ-HZ40WB-SUS
  • Shipping Weight: 0.5kg
  • Units in Stock: 9999

Price:   $25.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The product description:

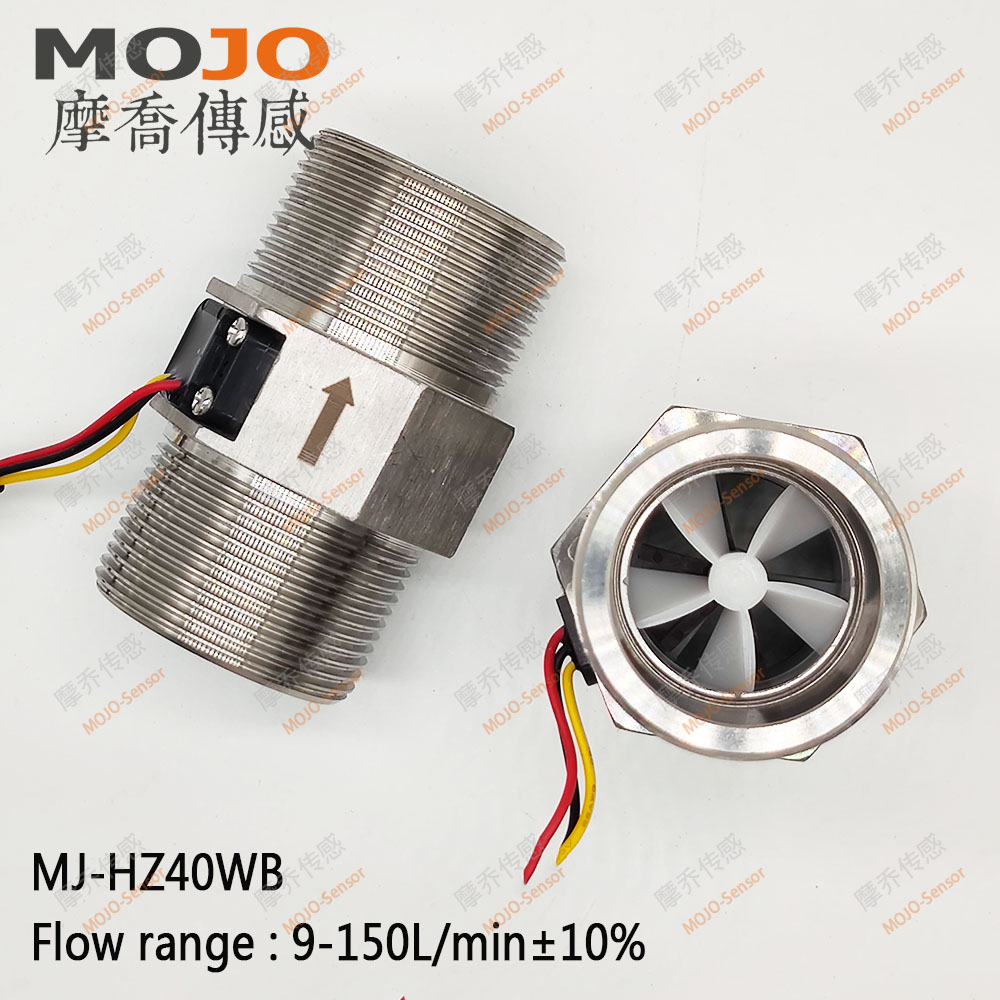

The main water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.



When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change. Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment, adjust proportional valve control of electric current.



Electrical parameters:



Water pressure resistance performance

0.8MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly

Maximum operating current

15  mA (DC 5V)

Operating voltage range

DC 4.5-18 V

Load capacity

≤10 mA (DC 5V)

Operating Temperature Range

≤80℃

Humidity Range

35%~90%RH(No frost status)

Storage Temperature

-25~+80℃

Storage Humidity

25%~95%RH

Output pulse high Level

>DC 4.5 V  (Input voltage DC 5 V)

Output pulse low level

<DC 0.5 V  (Input voltage DC 5 V)

Accuracy(Flow - pulse output)

9-150 L/min ± 10%

The output pulse duty cycle

50±10%

Output rise time

0.04μS

Output fall time

0.18μS

Flow- pulse characteristics

F(Hz)=[0.7* Q-6]±5%( Proficiency Test) (Q For flowL/min )

 Cumulative flow and pulse conversion ratio

1L water = 39 pulse ±10%







Technical test

Impact resistance

Good Product packaging,from 50cm height X、Y、Z direction The free fall to the concrete surface without exception Precision changes in less than 10%

Insulation resistance

Insulation resistance between the Hall sensor and copper body.

More than 100MΩ。(DC 500V)

Heat resistance

Placed the environment of 80 ± 3 ° C for 48h , Return to room temperature 1- 2h no exception And parts free of cracks , relaxation, expansion , deformation phenomena such as precision changes in less than 10%.

Cold resistance

Placed in the environment of -20 ± 3 ℃ 48h, return to room temperature 1-2h no exception, and part non-cleaved Pattern, relaxation , expansion , deformation phenomena such as precision change less than 10%.

Moisture resistance

40 ± 2 ° C , relative humidity 90 % ~ 95 % RH for 72h remove, the insulation resistance of 1MΩ or more

Drawing strength

1 minutes 10N pulling force imposed on the pin-out , no loose , pull -off phenomenon , and the performance did not change .

Durability



Into 0.1MPa water pressure at room temperature , from intake through to connect the 1S , disconnect the 0.5S is a cycle ,

300 000 test without exception .
