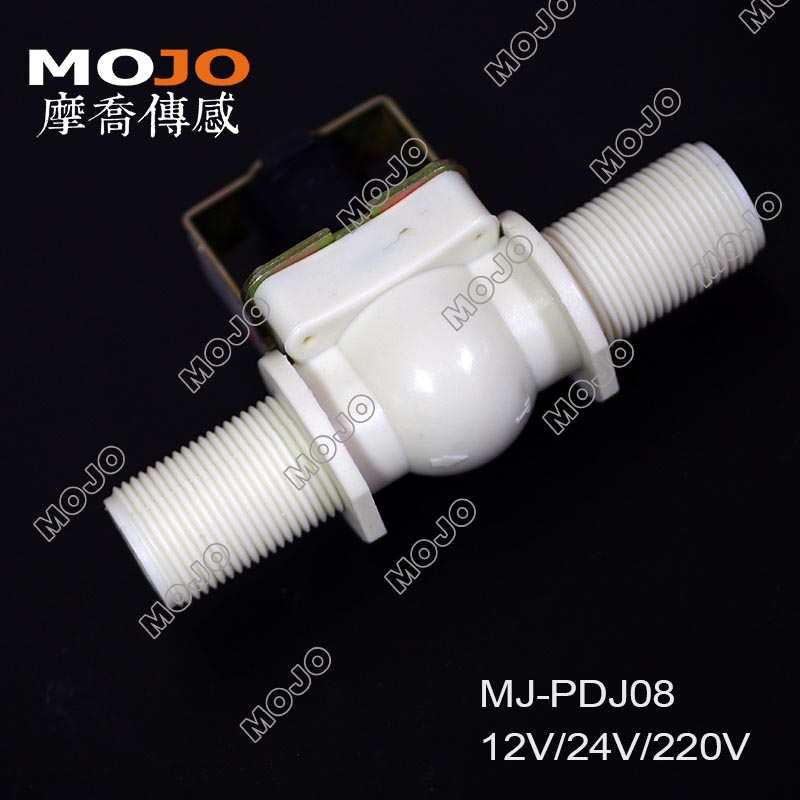

MJ-PDJ08 G3/4" 12V

MJ-PDJ08 G3/4\" 12V
Product Name

MJ-PDJ08 G3/4" 12V

  • Model: MJ-PDJ08
  • Shipping Weight: 0.3kg
  • Units in Stock: 90000

Price:   $7.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

Product main technical indicators and the matters need to pay attention:

1, The low pressure electromagnetic valve use environmental conditions:

1.1, Height is not more than 2500 meters above altitude.

1.2, The ambient temperature is 0 to 40 degrees.

1.3, Air relative humidity below 95% (when the temperature is 25 degrees)

2, The type and rated parameters:

2.1, Type: Type (one-way) electromagnetic valve, also known as packless pilot valve action type solenoid valve.

2.2, The rated voltage (dc) 3 v, 6 v, 12 v, 16 v, 24 v, 36 v 2.3, rated current: 3 v - 650 ma, 6 v - 500 ma, 12 v - 300 ma, 16 v - 260 ma, 24 v - 230 ma, 36 v - 150 ma, (pulse) 6 v - 180 ma.

2.4, The work style: short quotas) duty cycle

2.5, Insulation class: E insulation.

2.6, Using the medium (0-55 degrees), water ,vapor.

2.7, Using pressure: 0.02-0.8 Mpa.

2.8, The water flow characteristics:



Model: MJ-PDJ08



Type: parallel G3/4



Connection: Inlet G3/4 - Outlet G3/4



Medium temperature: 0-100 C



Working pressure: 0.02-0.8MPA
