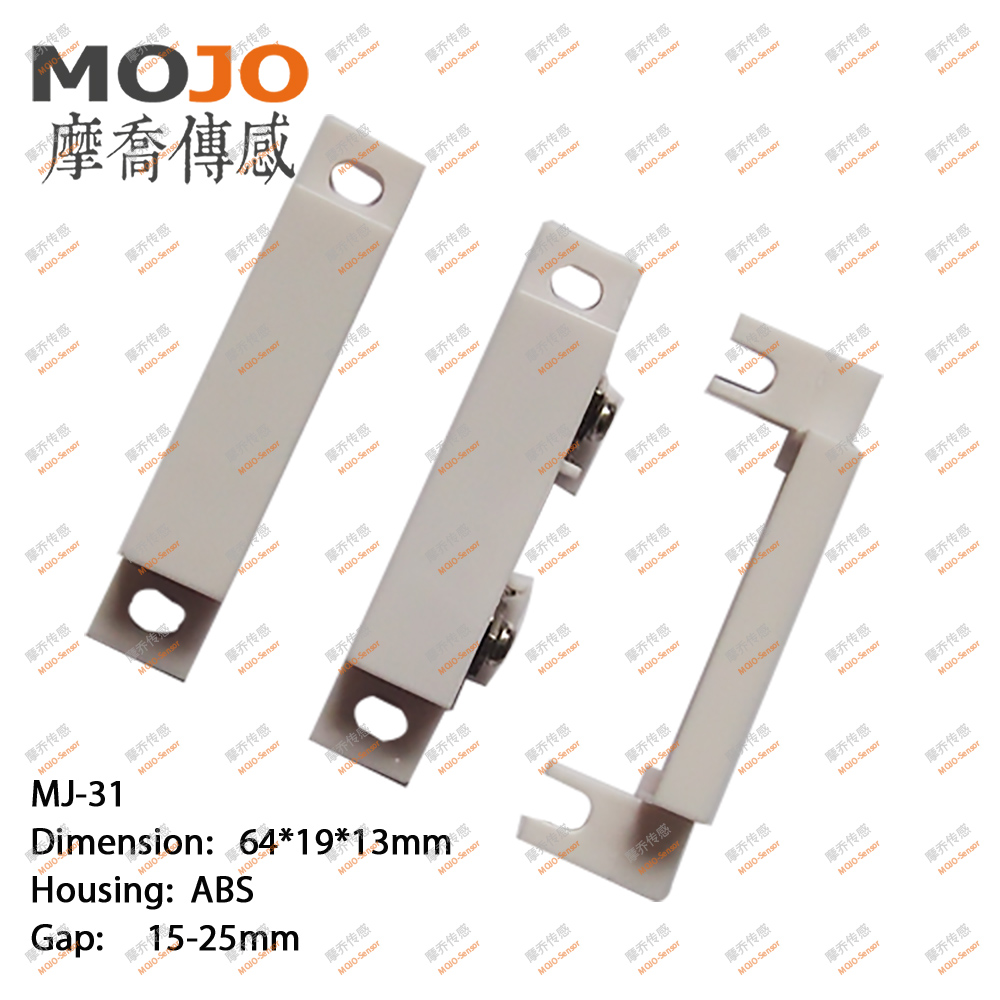

MJ-31 N.O Type

MJ-31 N.O Type
Product Name

MJ-31 N.O Type

  • Model: MJ-31
  • Shipping Weight: 0.01kg
  • Units in Stock: 10000

Price:   $1.80

-+Min:  10
0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ





Comfortable with: wooden doors and Windows
Squared shell color: white, brown
Squared to recognize: CCC, CE, FCC, ROHS
Squared shell size: the line: 15 * 63.5 * 13 mm, magnetic edge: 63.5 * 12 * 13 mm
SMT squared installation: screw
Squared connection mode: screw thread connection
Squared package installs: 10 sets of/package, 500 sets/carton





Electrical characteristic

Order specifications

Output signal

Shell material

Working distance

Maximum current/voltage/power/initial resistance

Min order quantity

NO-FPABS-2050

NO

FPABS

20-50

0.5A/100VDC/10W/200mΩ

1000

N0-ABS-2050

N0

ABS

20-50

0.5A/100VDC/10W/200mΩ

0

NC-ABS-1525

NC

ABS

15-25

0.2A/30VDC/3W/200mΩ

500

COM-ABS-1525

NC and NO

ABS

15-25

0.2A/30VDC/3W/200mΩ

500



The order only for the red color type,other type pls contact us to inquiry the price .
