Product Name

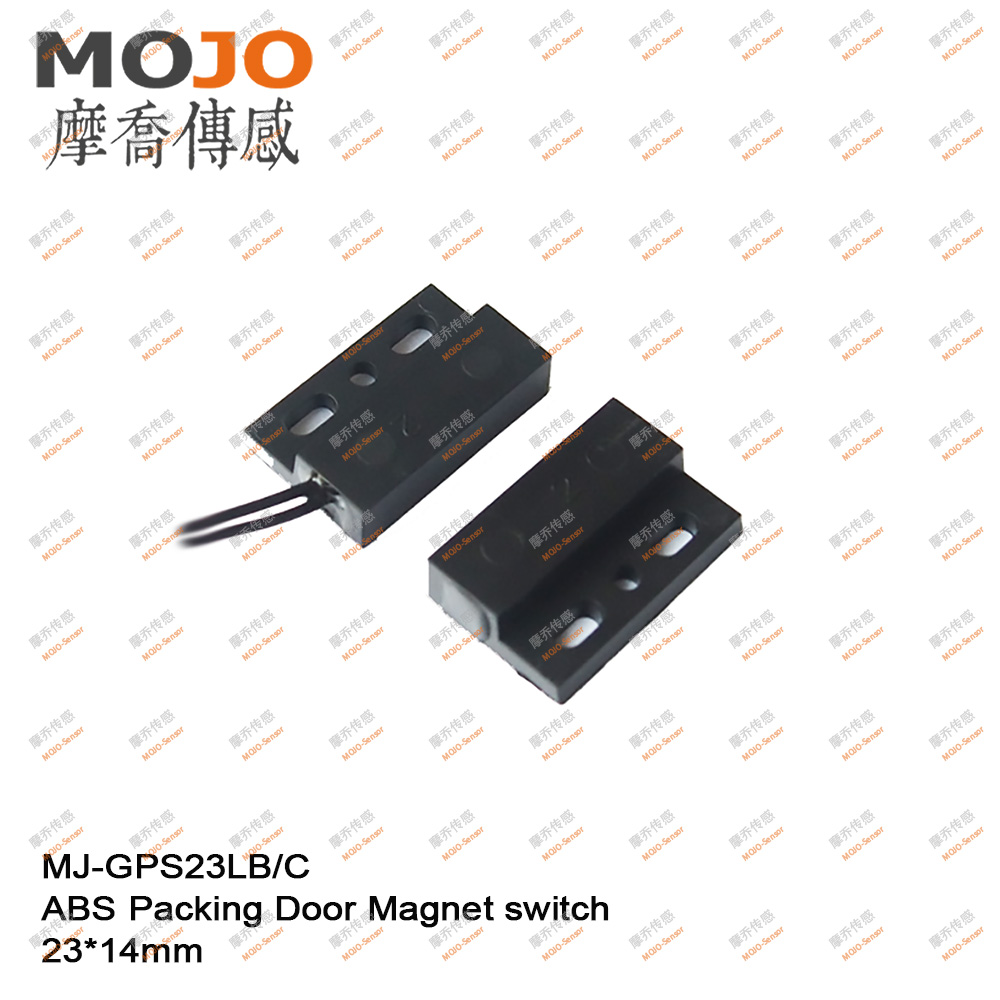

MJ-GPS23LB/23C N.C

  • Model: MJ-GPS23LB/23C
  • Shipping Weight: 0.01kg
  • Units in Stock: 90000

Price:   $3.50

-+Min:  5
0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The link is only for Normally Close type: On when the door is open,and OFF when the door close.

Sensor Body Material  本體材質

 ABS

Filling  填充物

 Epoxy

Max. Contact Rating  最大功率

 10 W

Max. Switching Voltage  最大開關電壓

 100 VDC

Max. Switching Current  最大開關電流

 0.5 A

Min. Breakdown Voltage  最小崩潰電壓

 200 VDC

Max. Carry Current  最大負載電流

 1.0 A

Max. Initial Contact Resistance  最大接觸電阻
Do not include the wire  不含線材

100 mΩ

Min. Insulation Resistance  最小絕緣電阻

 1010 Ω

Max. Release Time  釋放時間

 0.4ms

Max. Operate Time  動作時間

 1.0 ms
