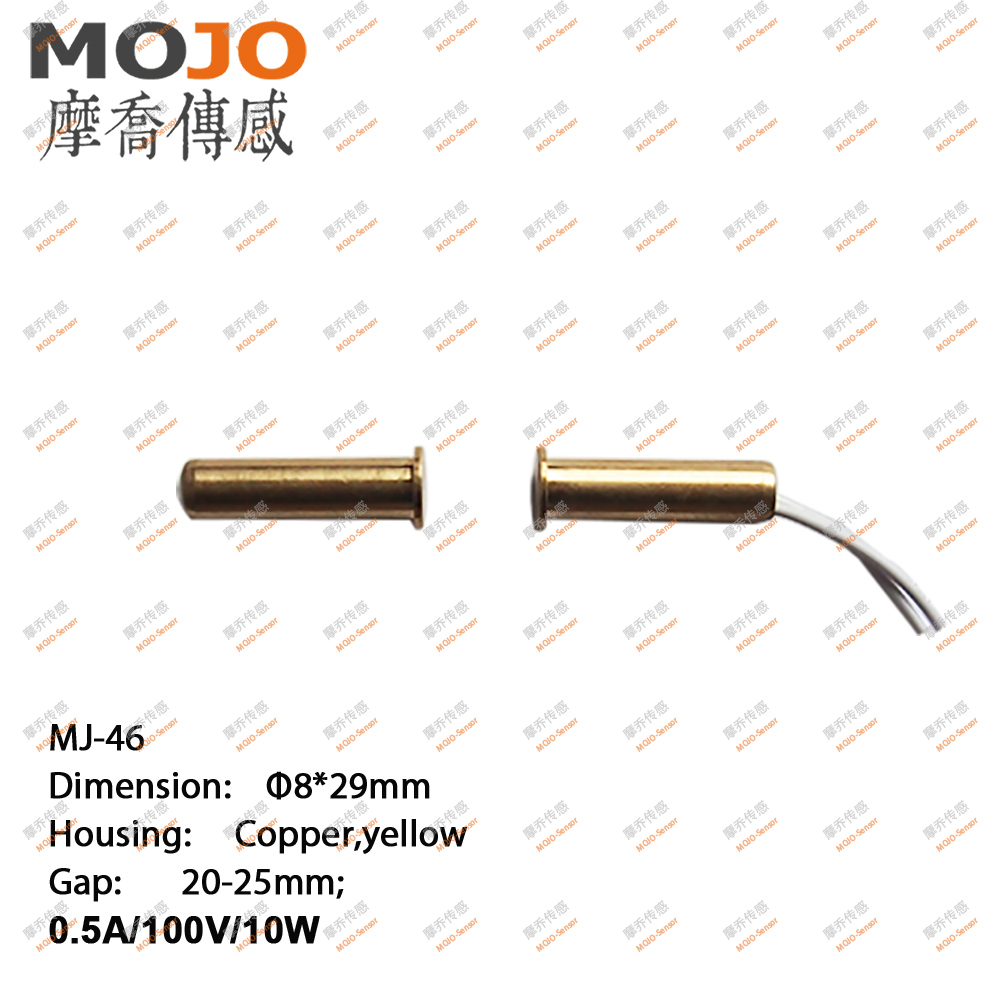

MJ-46|MJ-46|Metal Material Type

Model: MJ-46
Shipping Weight: 0.05kg
Units in Stock: 89990

MJ-46

Details
Reviews
Size&color
Tags
FAQ

Comfortable with: metal doors and Windows or metal cabinet door
Squared shell color: golden
Squared to recognize certificate: CE, FCC, ROHS
Squared shell size: 7.4 * Φ 29
Squared installation: Φ 7.4 bit drilling installation
Squared connection mode: 350 mm is the 1007/22 awg wire connection
Squared package installs: 10 / bag, 500 sets/carton

Electrical characteristic

`Order specifications`	`Output signal`	`Shell material`	`Working distance`	`Maximum current/voltage/power/initial resistance`	`Min order quantity`
`NO-CO-3040`	`NO`	`Copper`	`30-40`	`0.5A/100VDC/10W/200mΩ`	`1000`
`NO-CO-2530`	`NO`	`Copper`	`25-30`	`0.5A/100VDC/10W/200mΩ`	`0`
`NC-CO-2530`	`NC`	Copper	`25-30`	`0.2A/30VDC/3W/200mΩ`	`500`
