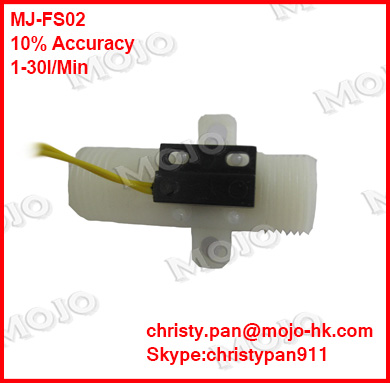

MJ-FS02 G1/2"

MJ-FS02 G1/2\"
Product Name

MJ-FS02 G1/2"

  • Model: MJ-FS02
  • Shipping Weight: 0.1kg
  • Units in Stock: 89970

Price:   $3.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

Applications



Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.



Electrical parameters



Name

 Material and parameter

Model code

 FS02

Fitting

1/2" external thread

Flow switches housing

 plastic  PBT

Operating pressure

140 PSI max

Temperature range

-10~105°C

Medium (Liquid)

Clean water

Contact Form

 Form A S.P.S.T.

Carry current

1.0A

Switch current

0.5Amax

Switch voltage

 220Vac/dc

Power rating

 50AV

Lead wire

AWG 22, 300mm length, UL1430, lead wire free terminal

Operating flow rating

0.75L/min

Setting flow value Accuracy

±10%

Mounting orientation (Vertical or Horizontal.)

 As signal of flow direction, Mounting

orientation at any orientation

Maximum flow

30L/min
