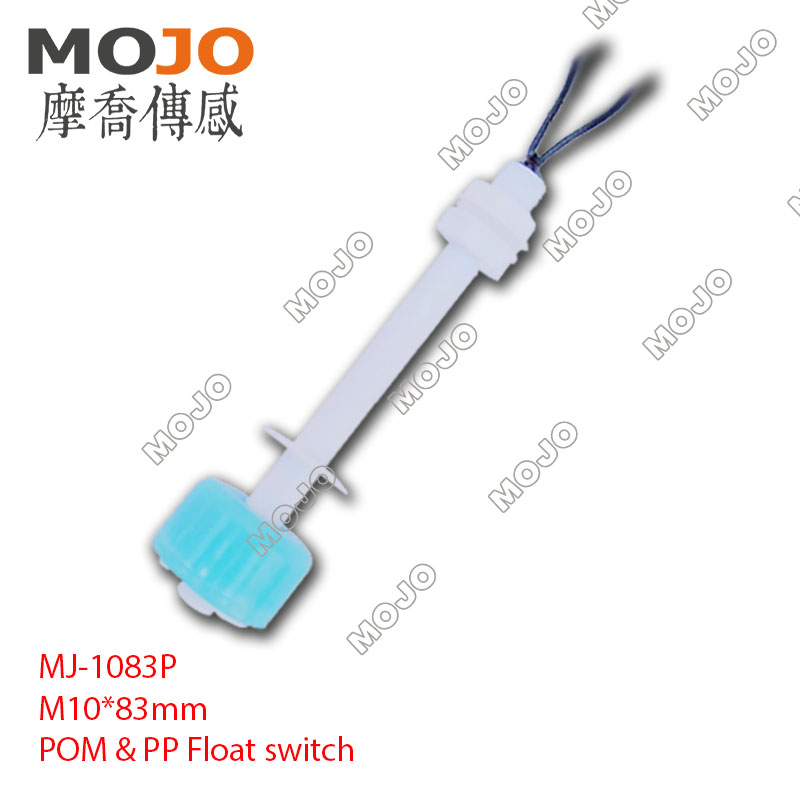

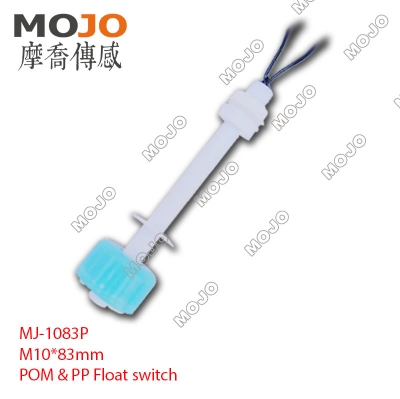

MJ-1083P 10W 100V 0.5A

The principle of operation
Liquid level sensors by the composition of reen switch and float ball, reed switch encapsulated inside the tube, and a ring megnet is equipped in the float ball, when the float moves up and down with the measured of liquid level, and the internal magnet to attract magnetic reed switch contact action, so that it can to detect the liquid level position.

Application
The product is mainlu used in household appliances, industrial equipment, gardening equipment, medical equipment, beauty salon equipment, aquatic farming and industrial water purification, sewage treatment systems, automatic door control system and other industries. According to different customers, the special needs of different environment, the product has a variety of sizes, a variety of materials available, can also accept OEM.

Installation instruction
1.Should be mounted away from the inlet, or switch will caused malfunctuon by the fluctuations in intake.
2.The load must be controlled circuit capacity with float switch contacts to match.
3.The proportion of liquid to be measured must be greater than the proportion of float.
4.Float action points have been ordered by the customer requirements adjusted at the factory. Please do mot adjust the float position.

Routine Maintenance
Periodically clear the guide rod and float on the dirt(as the media cycle may be.
Check for the loose buckle.

Electrical parameters

Please don't forget to let us know which function you need,to give the signal in High level or Low level.
