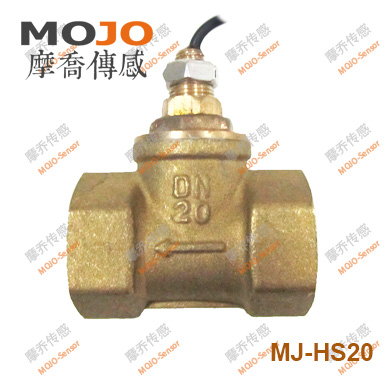

MJ-HS20 G3/4'' DN20

MJ-HS20 G3/4\'\' DN20
Product Name

MJ-HS20 G3/4'' DN20

  • Model: MJ-HS20
  • Shipping Weight: 0.4kg
  • Units in Stock: 90000

Price:   $14.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The principle of operation



Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.



Applications

Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.





Name

MJ-HS15

MJ-HS20

MJ-HS25

MJ-HS32

MJ-HS40

MJ-HS50



Product Features

The built-in piston fluctuation activities, the piston and the magnet reed pipe with given switch signals (0/1)

Material

Copper, inside the tooth interface

Diameter

DN15

DN20

DN25

DN32

DN40

DN50

LWH(MM)

48*25*60

56*32*66

68*39*75

79*49*100

84*55*113

105*68*140



ID

G1/2"

G3/4"

G1"

G11/4"

G11/2"

G2"



startup flow rate

3L/min

3.5L/min

3.5L/min

8L/min

8L/min

8L/min



maximum stream flow

8L/min

12L/min

30L/min

60L/min

80L/min

150L/min



Startup flow power

10W

70W

70W

70W

70W

70W



operating pressure

0.005-1.0Mpa

Max pressure

1.5Mpa

Media

Water

Operating temperature

0-80℃

Installation Method

With products for water into the direction of arrow, level installation

Flow control

Start flow can fine-tune, loosen switch fixed nut, up-down adjustment with teeth TongXin switch can

Attached table: Switch dry reed pipe parameters schedule

Switch parameters

Closed type/unipolar double head type 5 W

Normally Open type 10W

High voltage to normally open type 70W

Unit

Features



Maximum voltage

DC175/AC125

DC220

DC220/AC250

V

  Switch for the imported dry reed pipe



Breakdown voltage

DC200

DC250

DC400

V

Small flow start, big flow work



Max current

DC0.4/AC0.28

0.5

1

A

  Start flow rate can be adjusted



load current

0.5

1.25

1.5

Max A

 No standby power consumption



contact resistance

0.2

MaxΩ

One-way control, prevent backwater



Insulation Resistance

108

MinΩ

Industrial control and water treatment of good assistant



Temperature range

-40--120

Other specifications and wiring length can be made to order



HS15 for normally open type 10 W, HS20-HS50 for high voltage normally open type 70 W, if want to other switch type please explain.

NOTE:

1,When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.

2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.

3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.

4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.

5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
