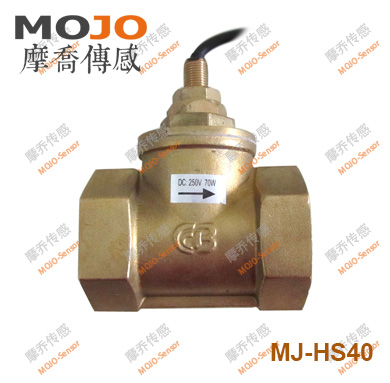

MJ-HS40 G1 1/2'' DN40|MJ-HS40|Piston flow switch

MJ-HS40 G1 1/2'' DN40

Details
Reviews
Size&color
Tags
FAQ

The principle of operation

Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.

Applications

Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.

Name		MJ-HS15		MJ-HS20		MJ-HS25	MJ-HS32		MJ-HS40	MJ-HS50
Product Features		The built-in piston fluctuation activities, the piston and the magnet reed pipe with given switch signals (0/1)
Material		Copper, inside the tooth interface
Diameter		DN15		DN20		DN25	DN32		DN40	DN50
LWH(MM)		482560		563266		683975	7949100		8455113	10568140
ID		G1/2"		G3/4"		G1"	G11/4"		G11/2"	G2"
startup flow rate		3L/min		3.5L/min		3.5L/min	8L/min		8L/min	8L/min
maximum stream flow		8L/min		12L/min		30L/min	60L/min		80L/min	150L/min
Startup flow power		10W		70W		70W	70W		70W	70W
operating pressure		0.005-1.0Mpa
Max pressure		1.5Mpa
Media		Water
Operating temperature		0-80℃
Installation Method		With products for water into the direction of arrow, level installation
Flow control		Start flow can fine-tune, loosen switch fixed nut, up-down adjustment with teeth TongXin switch can
Attached table: Switch dry reed pipe parameters schedule
Switch parameters	Closed type/unipolar double head type 5 W		Normally Open type 10W		High voltage to normally open type 70W		Unit	Features
Maximum voltage	DC175/AC125		DC220		DC220/AC250		V	Switch for the imported dry reed pipe
Breakdown voltage	DC200		DC250		DC400		V	Small flow start, big flow work
Max current	DC0.4/AC0.28		0.5		1		A	Start flow rate can be adjusted
load current	0.5		1.25		1.5		Max A	No standby power consumption
contact resistance	0.2						MaxΩ	One-way control, prevent backwater
Insulation Resistance	10⁸						MinΩ	Industrial control and water treatment of good assistant
Temperature range	-40--120						℃	Other specifications and wiring length can be made to order
HS15 for normally open type 10 W, HS20-HS50 for high voltage normally open type 70 W, if want to other switch type please explain.
NOTE：
1，When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.
2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.
3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.
4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.
5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
