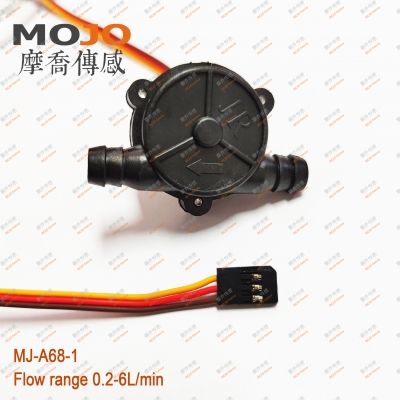

JIYI Drone flow meter MJ-A68-1（DuPont-75cm ）

Water pressure resistance performance

0.8MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly

Maximum operating current

15  mA （DC 5V）

Operating voltage range

DC 5-24 V

Load capacity

≤10 mA （DC 5V）

Operating Temperature Range

≤80℃

Humidity Range

35%～90%RH（No frost status）

Storage Temperature

-25～+80℃

Storage Humidity

25%～95%RH

Output pulse high Level

>DC 4.5 V  (Input voltage DC 5 V)

Output pulse low level

<DC 0.5 V  (Input voltage DC 5 V)

Accuracy（Flow - pulse output）

0.2-6 L/min±10%

The output pulse duty cycle

50±10%

Output rise time

0.04μS

Output fall time

0.18μS

Flow- pulse characteristics

F(Hz)=[30*Q]±10%( Proficiency Test) (Q For flowL/min )
