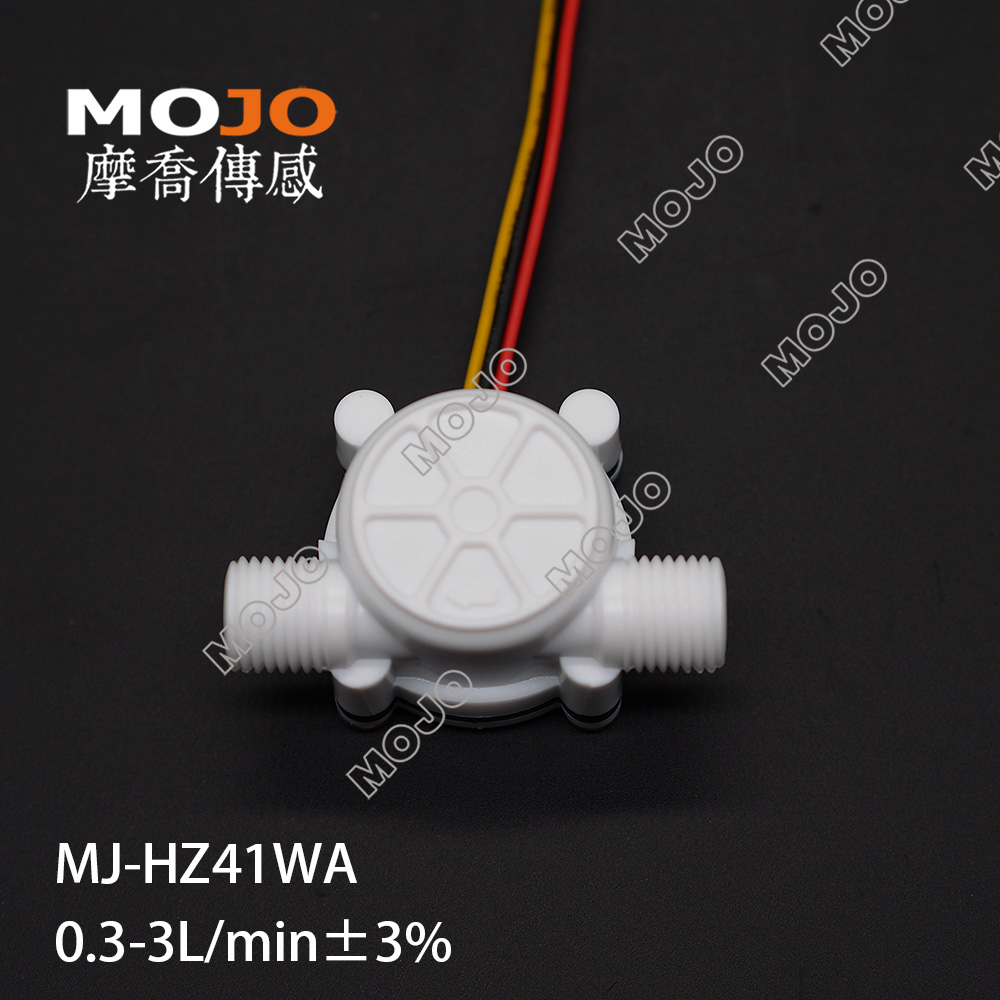

MJ-HZ41WA 0.3-3L/Min

MJ-HZ41WA 0.3-3L/Min
Product Name

MJ-HZ41WA 0.3-3L/Min

  • Model: MJ-HZ41WA
  • Shipping Weight: 0.03kg
  • Units in Stock: 9999

Price:   $3.50

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The product description:

The main water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.



When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change. Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment, adjust proportional valve control of electric current.





Electrical parameters:



Water pressure resistance performance

0.35MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly

Maximum operating current

15  mA (DC 5V)

Operating voltage range

DC  5~24 V

Load capacity

≤10 mA (DC 5V)

Operating Temperature Range

≤80℃

Humidity Range

35%~90%RH(No frost status)

Storage Temperature

-25~+80℃

Storage Humidity

25%~95%RH

Output pulse high Level

>DC 4.5 V  (Input voltage DC 5 V)

Output pulse low level

<DC 0.5 V  (Input voltage DC 5 V)

Accuracy(Flow - pulse output)

0.3-3 L/min±3%

The output pulse duty cycle

50±10%

Output rise time

0.04μS

Output fall time

0.18μS

Flow- pulse characteristics

F(Hz)=[23 Q]±10%( Proficiency Test) (Q For flowL/min )

 Cumulative flow and pulse conversion ratio

1L water = 1380Hz ±5%
