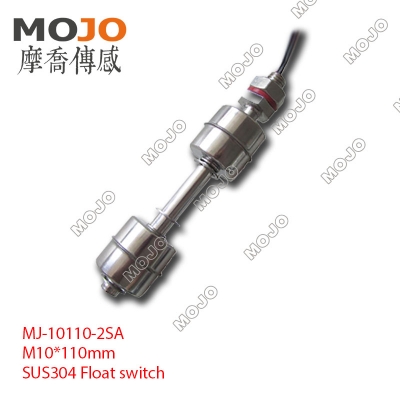

MJ-10110-2SA 50W 220V 1A

MJ-10110-2SA 50W 220V 1A
Product Name

MJ-10110-2SA 50W 220V 1A

  • Model: MJ-10110-2SA 50W
  • Shipping Weight: 0.1kg
  • Units in Stock: 10000

Price:   $5.00

-+Min:  5
0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The principle of operation



Liquid level sensors by the composition of reed switches and float, reed switch encapsulated in the guide, and a ring magnet is equipped in the float, when the float moves up and down with the measured of liquid level,and the internal magnet to attract magnetic reed switch contact action,so that it can to detect the liquid level position.



Applications



The product is mainly used in household appliances (such as: water machine, water dispenser, humidifier, dehumidifier, water heater, air conditioning, direct drinking water system, family, etc.), industrial equipment (such as: air hydraulic machine, Cooler, drainage, lubricating oil system), gardening equipment, medical equipment, beauty salon equipment, aquatic farming and industrial water purification, sewage treatment systems, automatic door control system and other industries.

According to different customers, the special needs of different environments, the product has a variety of sizes, a variety of materials available, can also accept custom.



Electrical parameters



Date scan

1A1

2A1

Max Contact Rating

10W

50W

Max Switching Voltage

110VAC/110VDC

220VAC/220VDC

Max Switching Current

0.5A

1.5A

Max Breakdown Voltage

110VDC

300VAC/350VDC

Max Carry Current

1.0A

3.0A

Max Contact Resistance

100mΩ

100mΩ

Temperature range

-30~+125°C

-30~+125°C

Float Ball Material

SUS304

SUS304

Float Body Material

SUS304

SUS304





Mounting

Top or bottom of the vertical installation

Installation dimensions

M10

Operating Characteristics

Floating on or fall on (optional)

Working Medium

Water, oil, chemical media

Temperature range

-30~+125°C

Pressure range

0.2MPa






Installation instructions



1.Should be mounted away from the inlet, or switch will caused malfunction by the fluctuations in intake.

2.The load must be controlled circuit capacity with float switch contacts to match.

3.The proportion of liquid to be measured must be greater than the proportion of float.

4.Float action points have been ordered by the customer requirements adjusted at the factory, Please do not adjust the float position.



Routine maintenance



Periodically clear the guide rod and float on the dirt (as the media cycle may be).

Check for the loose buckle.







Please don't for get to let us know which function you need,to give the signal in High level or Low level.
