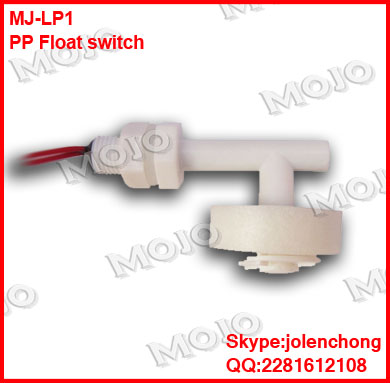

MJ-LP1 50W 220V 1A

MJ-LP1 50W 220V 1A
Product Name

MJ-LP1 50W 220V 1A

  • Model: MJ-LP1 50W
  • Shipping Weight: 0.01kg
  • Units in Stock: 10000

Price:   $2.50

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ



The principle of operation
Liquid level sensors by the composition of reen switch and float ball, reed switch encapsulated inside the tube, and a ring megnet is equipped in the float ball, when the float moves up and down with the measured of liquid level, and the internal magnet to attract magnetic reed switch contact action, so that it can to detect the liquid level position.



Application
The product is mainlu used in household appliances, industrial equipment, gardening equipment, medical equipment, beauty salon equipment, aquatic farming and industrial water purification, sewage treatment systems, automatic door control system and other industries. According to different customers, the special needs of different environment, the product has a variety of sizes, a variety of materials available, can also accept OEM.



Installation instruction
1.Should be mounted away from the inlet, or switch will caused malfunctuon by the fluctuations in intake.
2.The load must be controlled circuit capacity with float switch contacts to match.
3.The proportion of liquid to be measured must be greater than the proportion of float.
4.Float action points have been ordered by the customer requirements adjusted at the factory. Please do mot adjust the float position.



Routine Maintenance
Periodically clear the guide rod and float on the dirt(as the media cycle may be.
Check for the loose buckle.



Electrical parameters





Date scan

1A1

2A1

Max Contact Rating

10W

50W

Max Switching Voltage

100VAC/100VDC

300VAC/350VDC

Max Switching Current

0.5A

DC0.7A/AC0.5A

Max Breakdown Voltage

110V

300VAC/350VDC

Max Carry Current

1.0A

2.5A

Max Contact Resistance

100mΩ

100mΩ

Temperature range

-10~+85°C

-10~+85°C

Float Ball Materia

PP

PP

Float Body Material

PP

PP



Mounting

Horizontal installation(side mounting)

Installation dimensions

M8

Operating Characteristics

Floating on or fall on (optional)

Working Medium

Water, oil, chemical media

Temperature range

–10~+85°C

Pressure range

0.2MPa





Please don't for get to let us know which function you need,to give the signal in High level or Low level.
