Product Name

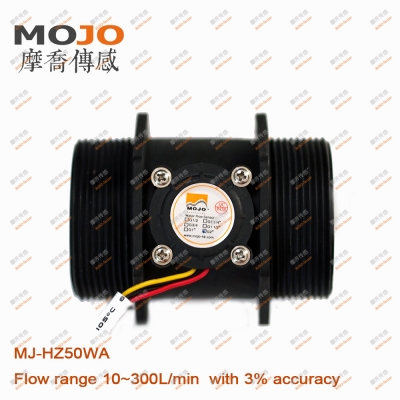

MJ-HZ50WA 2'' Inch

  • Model: MJ-HZ50WA
  • Shipping Weight: 0.85kg
  • Units in Stock: 89951

Price:   $18.00

0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

Specification:

Scope of application:

Apply to the water heater, water treatment system

Base specification

1、The lowest rated voltage

DC5V-24V

2、Maximum Operating Current

15  mA (DC 5V)

3、Operating Voltage

DC 5~18 V

4、carrying capacity

≤10 mA (DC 5V)

5、Operating Temp

≤80℃

6、Use humidity scope

35%~90%RH(No frost)

7、Allow the pressure

≤1.75Mpa

8、Storage Temp

-25~+80℃

9、Storage Relative Humidity

25%~95%RH

Technology specification

1、The output pulse high level

>DC 4.5 V  (INPUT DC 5 V)

2、The output pulse is low level

<DC 0.5 V  (INPUT DC 5 V)

3、Accuracy (Flow range)

5~250 L/min±5%

4、The output pulse duty ratio

50±10%

5、Output Rise Time

0.04μS

6、Output Fall Time

0.18μS

7、Traffic - pulse characteristics

Proficiency test pulse frequency F(Hz)=[0.2* Q]±5%(Horizontal test) (Q for water “L/min” )

8、impact resistance value

Good product packaging, X, Y, Z direction from 50 cm height then drop to the concrete surface without exception, change within 5% accuracy。

9、Insulated resistance

Hall sensor and insulation resistance between copper body above 100 m Ω. (DC 500V)

10、heat resistance

In the 80±3℃ environment for 48 h, return to room temperature for 1 to 2 h without exception, no crack, relaxation and parts, expansion and deformation phenomenon, change within 5% accuracy.







Remark

  1. Don’t disassemble when the product is found to have quality problems .
  2. For dry air sensor within the residual water should pay attention to the blowing pressure <0.3MPa and intermittent output impeller.Can not be rotated at high speed in the anhydrous state .





Connection mode:

  1. RED line for power+
  2. BLACK line for power-

YELLOW line for signal output





Installation instructions

1、When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.

2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.

3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.

4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.

5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
