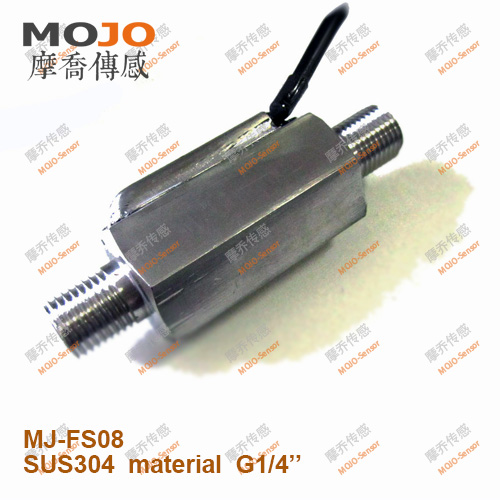

MJ-FS08 G1/4‘’SS304

MJ-FS08 G1/4‘’SS304
Product Name

MJ-FS08 G1/4‘’SS304

  • Model: MJ-FS08
  • Shipping Weight: 0.15kg
  • Units in Stock: 90000

Price:   $13.00

-+Min:  5
0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

The principle of operation

Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.





Installation instructions

1, Flow switch installation environment to avoid strong vibration, and shaking with the local magnetic environment, in order to avoid the flow switch malfunction. In order to avoid particles, debris into the water flow switch must be installed in the inlet filter.



2, When the magnetic material close to the water flow switch, its characteristics may change.



3, Flow switches, relays must be compatible with use, as less power reed switch (typically 10W and 70W) easy to burn. Relay maximum power 3W, 3W power will be greater than the normally open and normally closed phenomenon.









Electrical characteristic



Caliber

G1/4

A(L)

71mm

B(H)

--

C(W)

27mm

Flow range

0.75-15L/Min

Material

SUS304

Entrance

Outlet

Installation angle

Horizontal/vertical





Suitable environment temperature

≥1℃

Suitable working temperature

≥ 0℃≤125℃

Minimum start flow

≥0.75-3L/min

Maximum flow

≤5-15L/min

rated operating pressure

≤0.65Mpa

Shell maximum pressure

≤1.5Mpa

Switch current

<0.8A

Switch voltage

<250Vdc
